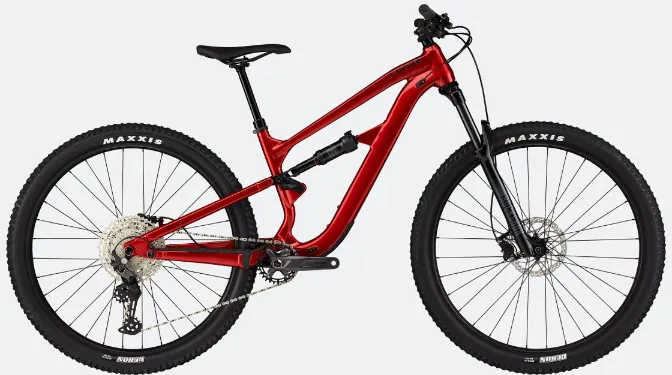

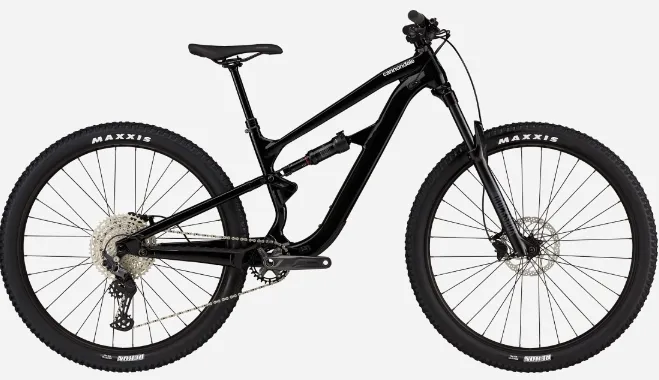

Name: Cannondale Habit 4 29" Mountain Bike
SKU: 381634

Flow Seeker

A trail mountain bike that is primed for grinding climbs, mashing flats, and ripping descents. One for all, and all for fun!

Where it thrives

Out in the elements

What it's built for

Trail riding fun

Highlights

SmartForm C1 Alloy Frame / Shimano Deore 12-speed drivetrain
Rockshox Recon RL 140mm fork / Deluxe Select shock
Shimano hydraulic disc brakes discs / TranzX dropper post

Built for you.

The Habit geometry is uniquely size specific. With our Proportional Response Design, everything from the suspension layout to, the geometry —even the length of the chain stays — is completely customized by size. Performance built, just for you.

Blissfully Balanced

With a head tube angle of 65.5° and the seat tube set at 77.5°, you are sitting in the optimal position for powering uphill, shredding downhill, and stopping to smell the roses.

Easy to love

Keeping things simple and easy for the rider with threaded BBs, universal derailleur hanger, standard shock mount, internal cable routing, and an updated 55mm chain line standard for tire clearance. All designed to make it as easy as possible to live with and to love.

Specs

Details

Platform
Habit
Model Name
Habit 4
Model Code
C23401U

Frameset

Frame
Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger
Fork
RockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset
Headset
Integrated Sealed Bearing, Tapered
Rear Shock
RockShox Deluxe Select, DebonAir, adjustable rebound

Drivetrain

Rear Derailleur
Shimano Deore M6100
Shifters
Shimano Deore M6100, 12-speed
Chain
KMC X12, 12-speed
Crank
Shimano, FC-5121, 30T, 55mm chainline
Rear Cogs
Shimano Deore M6100, 11-51, 12-speed
Bottom Bracket
Shimano BSA 73

Brakes

Brakes
Shimano MT200 hydraulic disc, 180/180mm RT30 rotors, centerlock
Brake Levers
Shimano MT200 hydraulic disc

Wheels

Rims
WTB STX i25 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tire Size
2.4
Wheel Size
29, 27.5 (XS)
Hubs
(F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Tires
Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
Front Tire
Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO
Rear Tire
Maxxis Rekon, 29x2.4" (27.5x2.4" - XS), EXO

Components

Handlebar
Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem
Cannondale 3, 6061 Alloy, 31.8, 0°
Grips
Cannondale Locking Grips
Saddle
Cannondale Ergo XC
Seatpost
TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)

Please note that, based on component availability and other factors, specifications are subject to change without notice.
