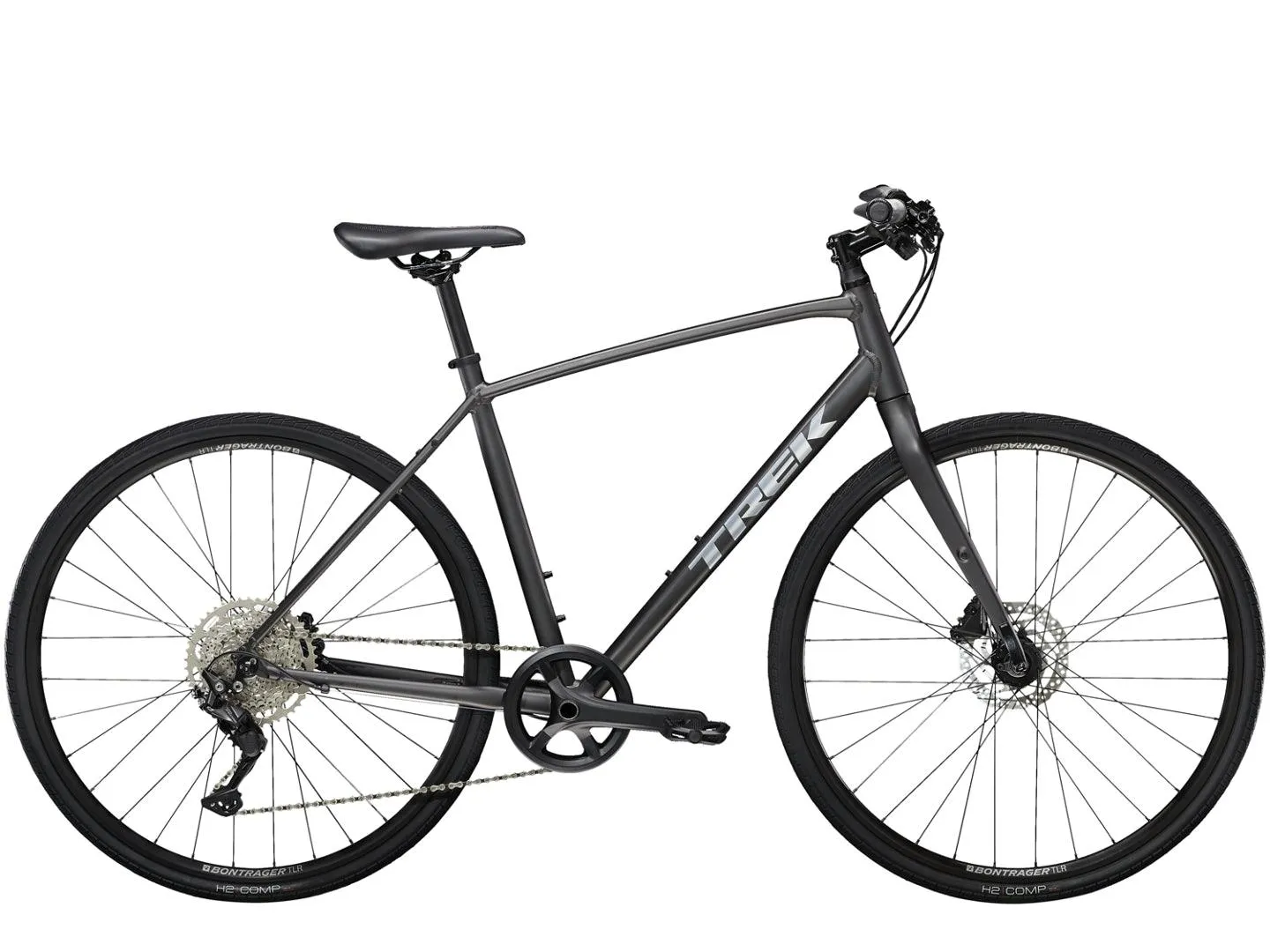

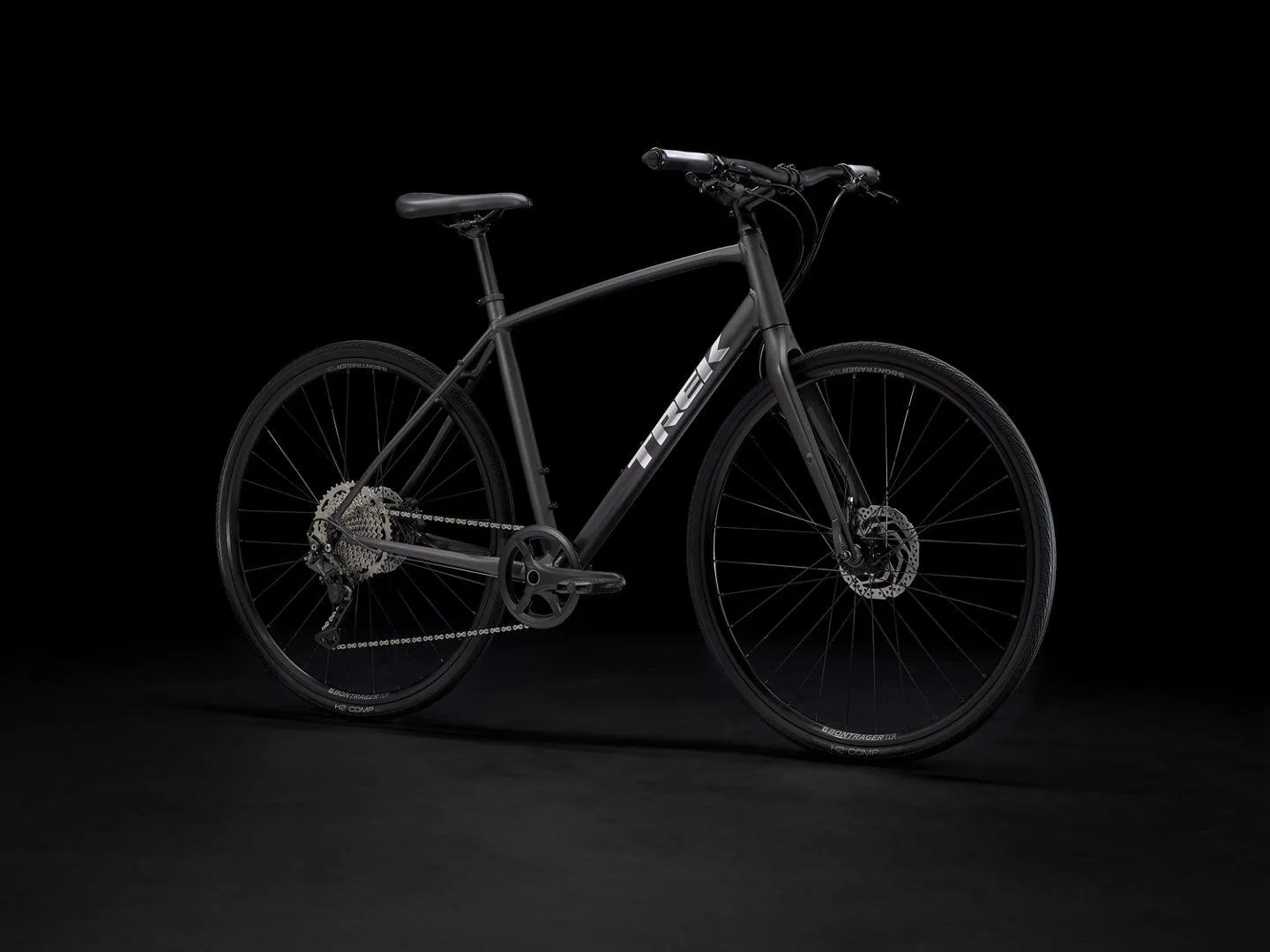

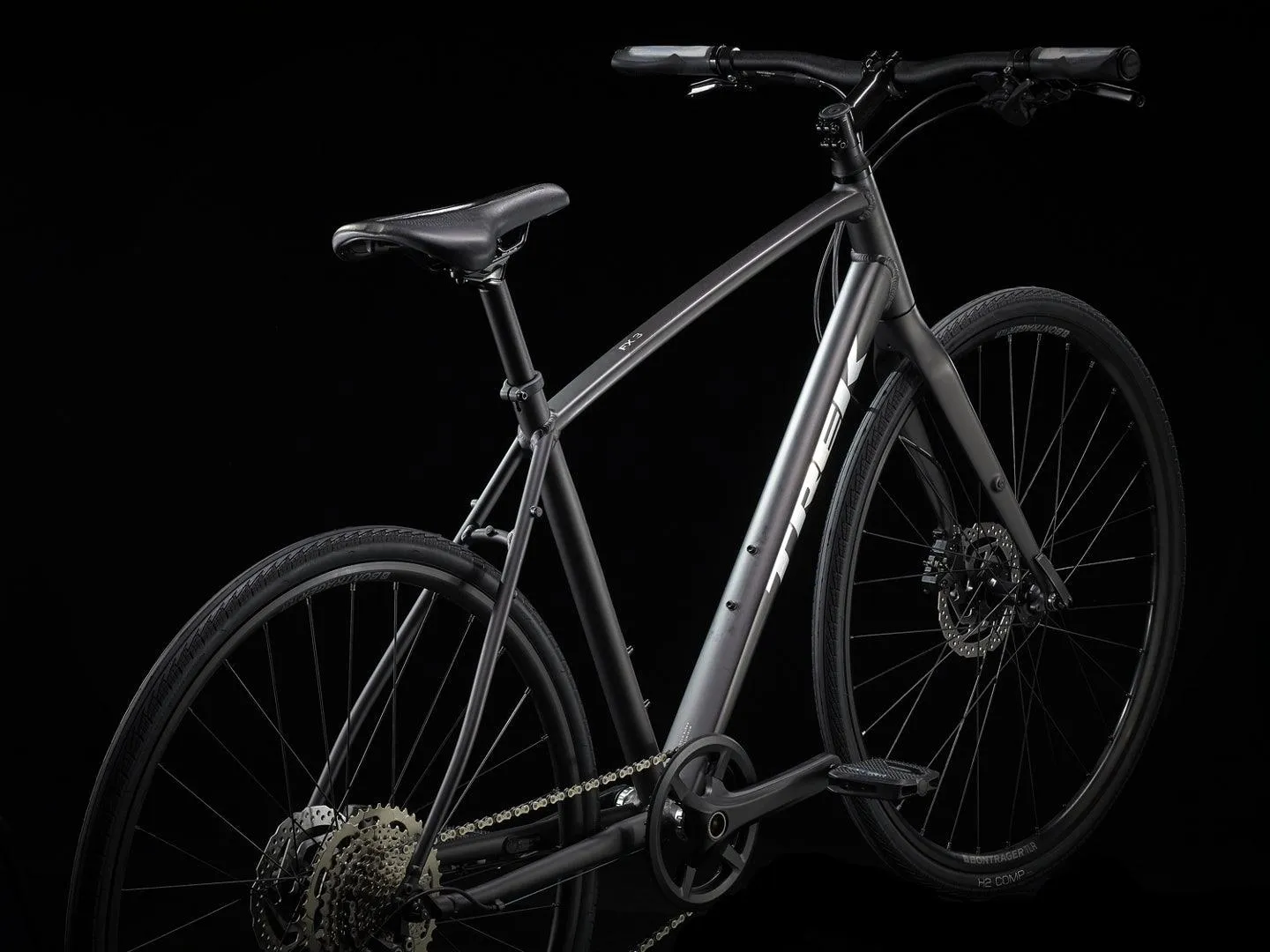

FX 3 Disc is a versatile hybrid bike that's primed for performance, comfort and utility. It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.

Features

• It's right for you if... You're a commuter or fitness rider who’s having fun spending more time in the saddle. You want a great-looking bike that's versatile, comfortable and built with quality parts that will perform on longer rides.

• The tech you get A lightweight aluminium frame, a carbon fork, hydraulic disc brakes for all-weather stopping power and a simple 1x drivetrain that ditches the front derailleur for less clutter and easier operation. Don't worry, with the wide-range 11-46 cassette still gives you all the gears you need to conquer hills and crush flats. Plus, a vibration-absorbing handlebar and ergonomic grips for more comfort on every ride.
• The final word FX 3 Disc is a lightweight and fast fitness bike, commuter and neighbourhood cruiser all in one. For all the great things about this bike, the best tech upgrade is the simple-yet-capable 1x10 drivetrain.

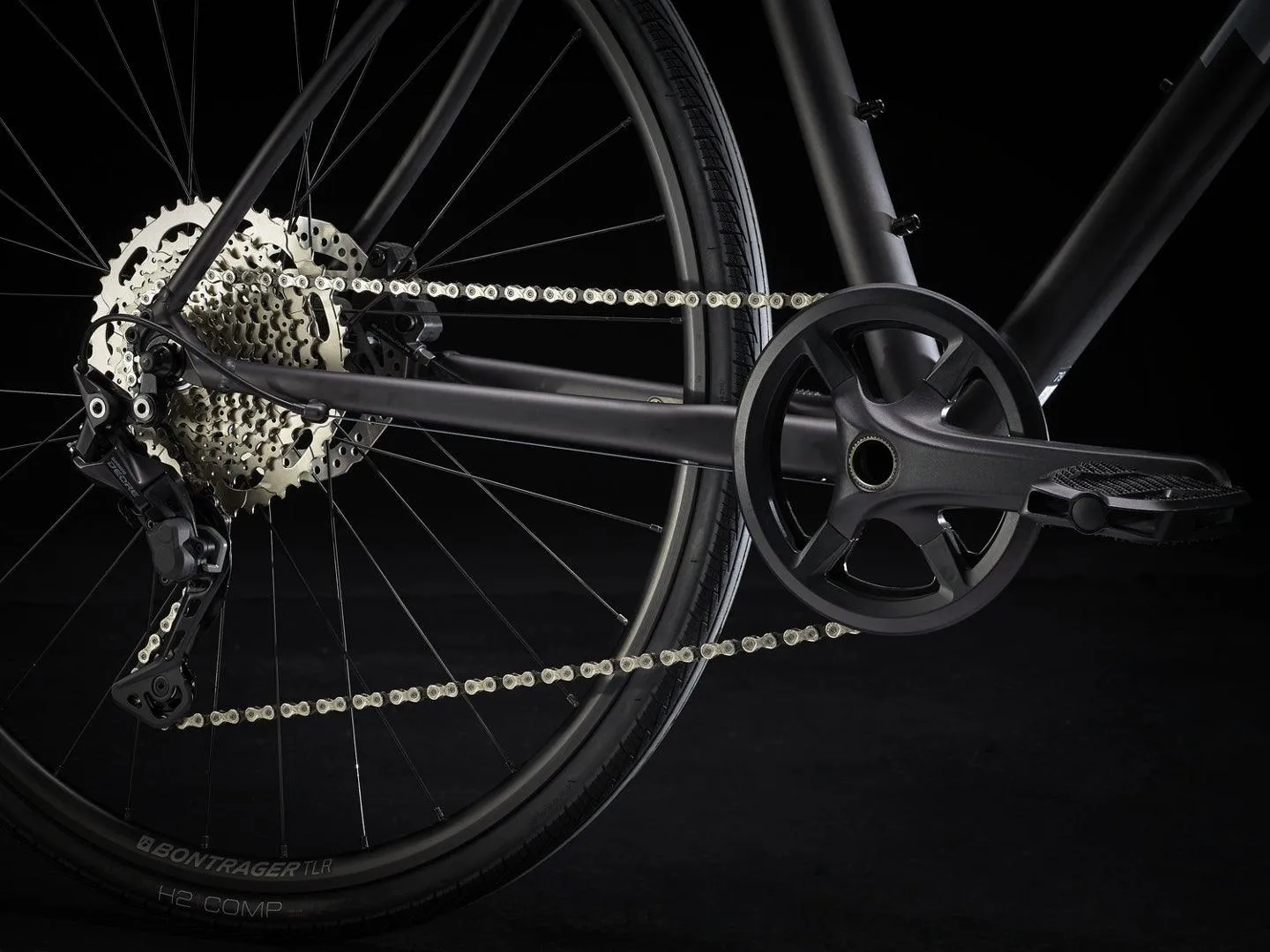

• A 1x10 drivetrain means more versatility, simpler shifting and fewer things to go wrong. You still have a wide range of gears, but with lighter and more intuitive shifting. Everything you need and nothing more.

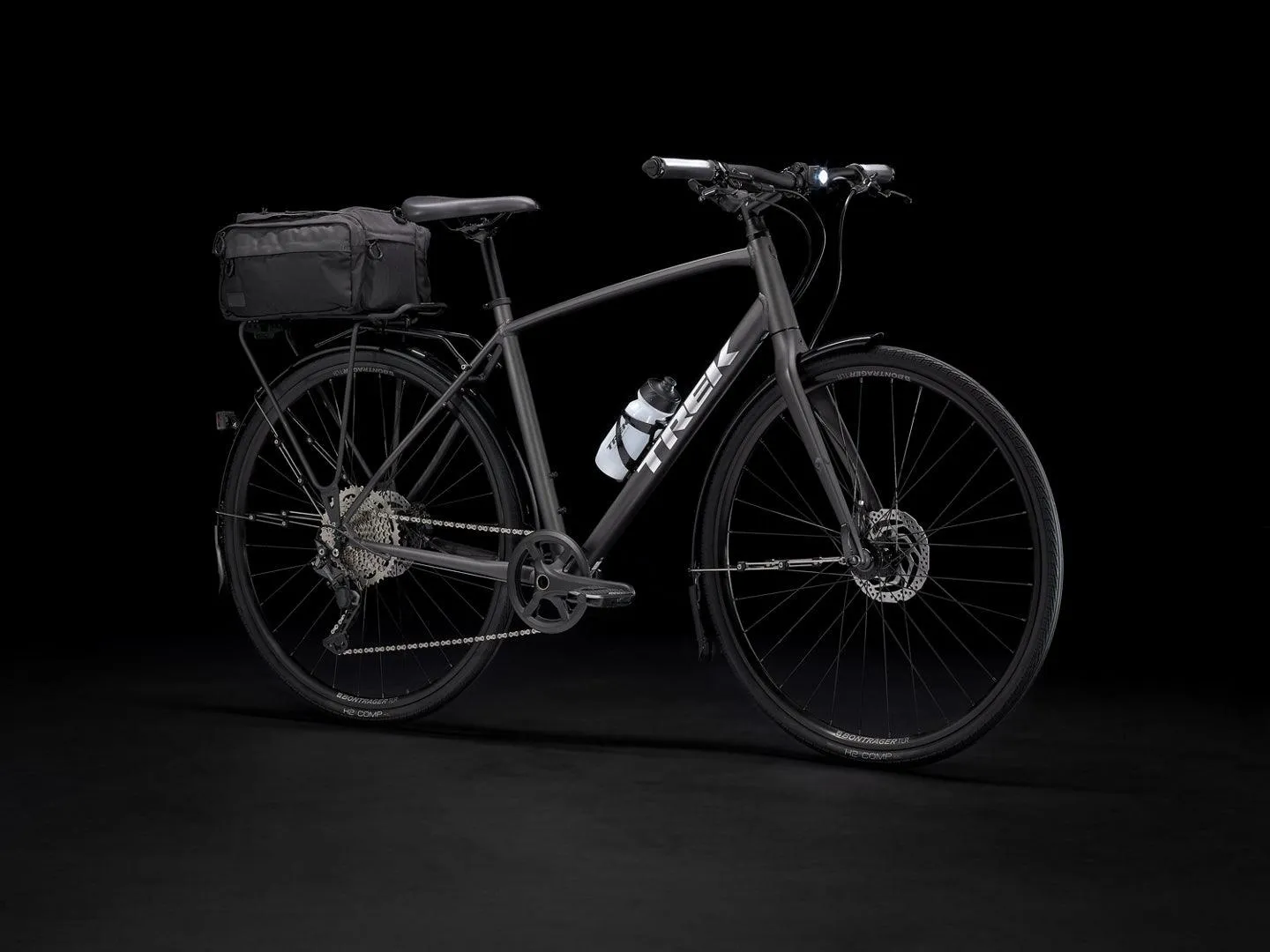

• The 1x drivetrain gives you all the gears you need and none you don’t. It's easy to accessorise with an MIK rear rack, a kickstand, mudguards, lights and more!. It's versatile and does whatever you want it to do, whether that's riding for fitness, commuting or cruising to the farmer's market to do the weekly shop.

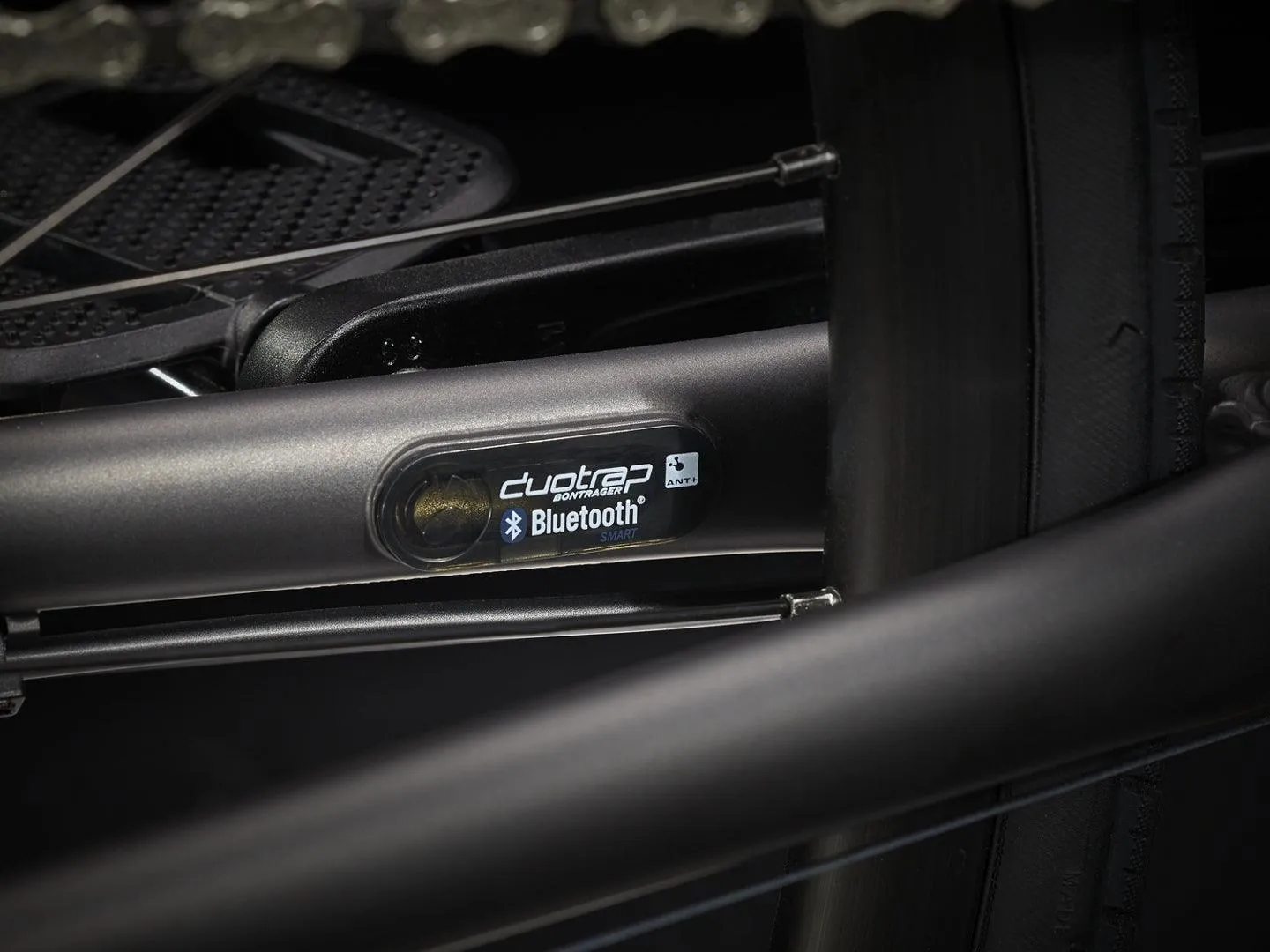

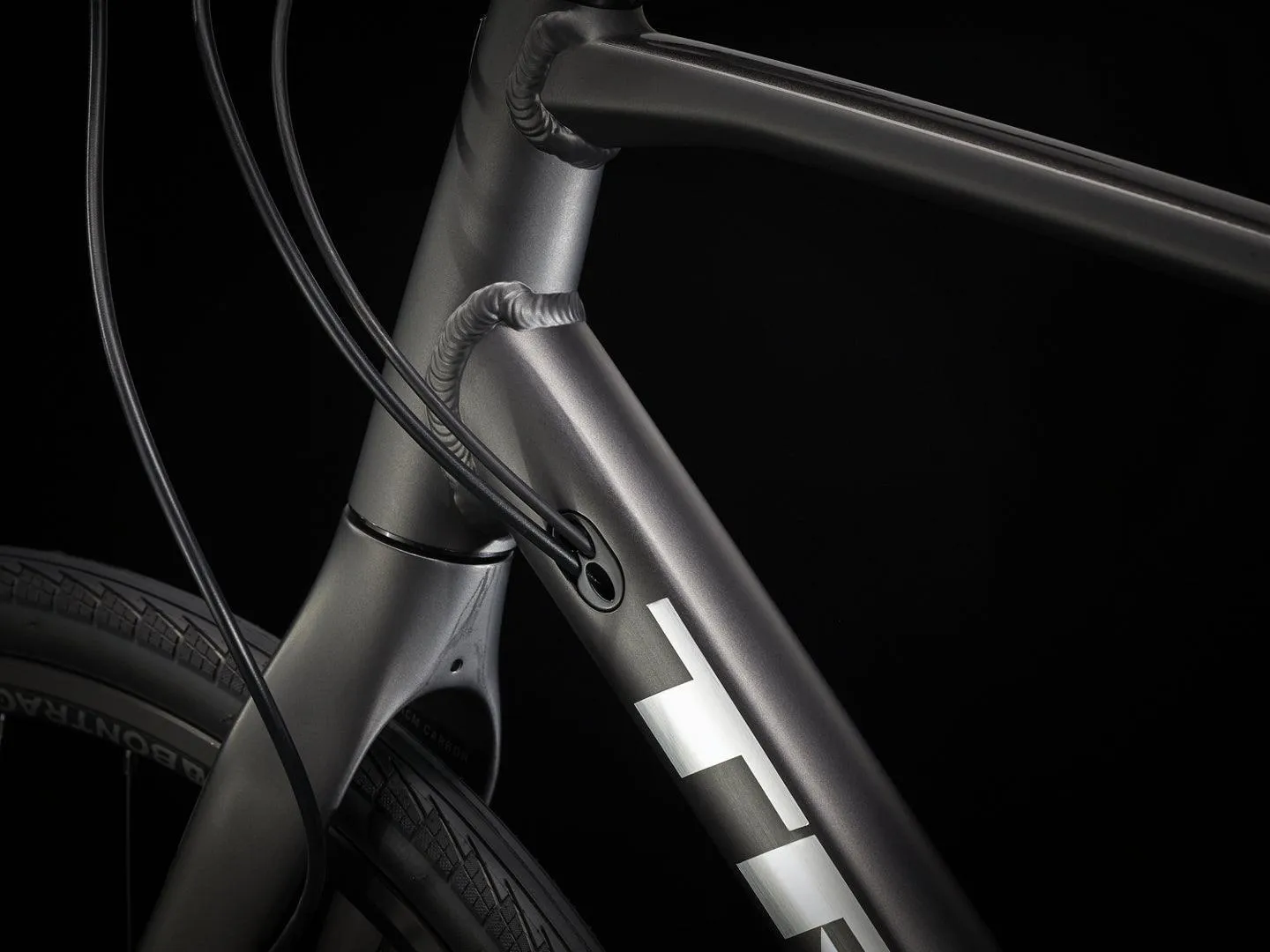

• The cables are routed internally, which protects them from the elements and adds to the bike's sleek look. You can pair FX with your smartphone and send your ride data to your favourite fitness app when you add DuoTrap S

Specifications

• Intended Use- Recreation
• Wheel Size- 700c
• Braking System- Hydraulic Disc
• Frame Material- Aluminium
• Fork Material- Carbon

Components

• Frame- Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
• Fork- FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR
• Chain- KMC X10, 10-speed

• Crank-
  Size: XS, S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length
  Size: L, XL, XXL Prowheel alloy, 40T narrow-wide ring, 175 mm length
• Shift Levers- Shimano Deore M4100, 10 speed
• Cassette- Shimano Deore M4100, 11-46, 10-speed
• Rear Derailleur- Shimano Deore M5120, long cage

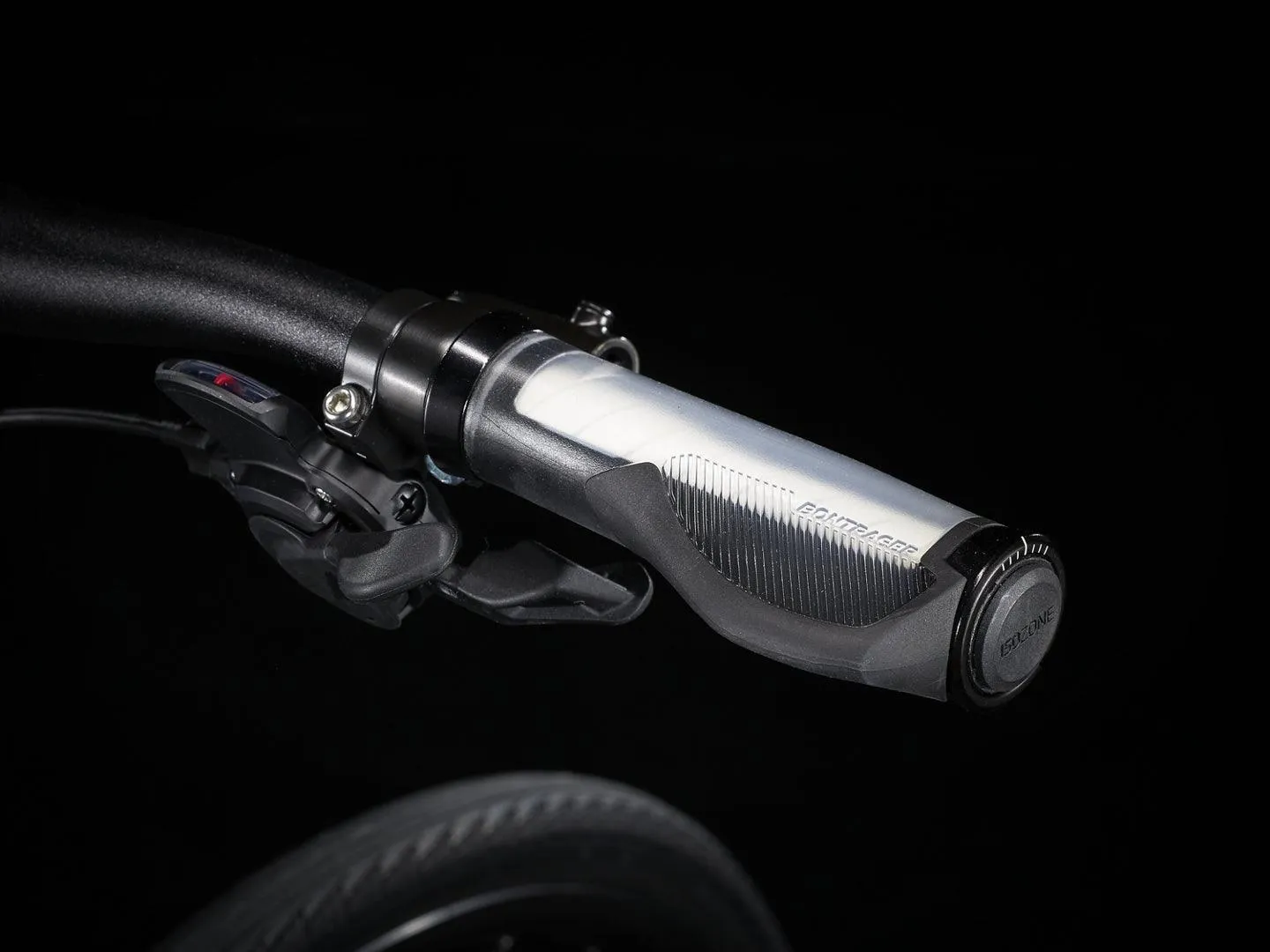

• Grips/Bartape- Bontrager Satellite IsoZone Plus, lock-on, ergonomic
• Handlebar-
  Size: XS, S, M Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
  Size: L, XL, XXL Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width
• Stem-
  Size: XS, S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
  Size: M, L, XL, XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length

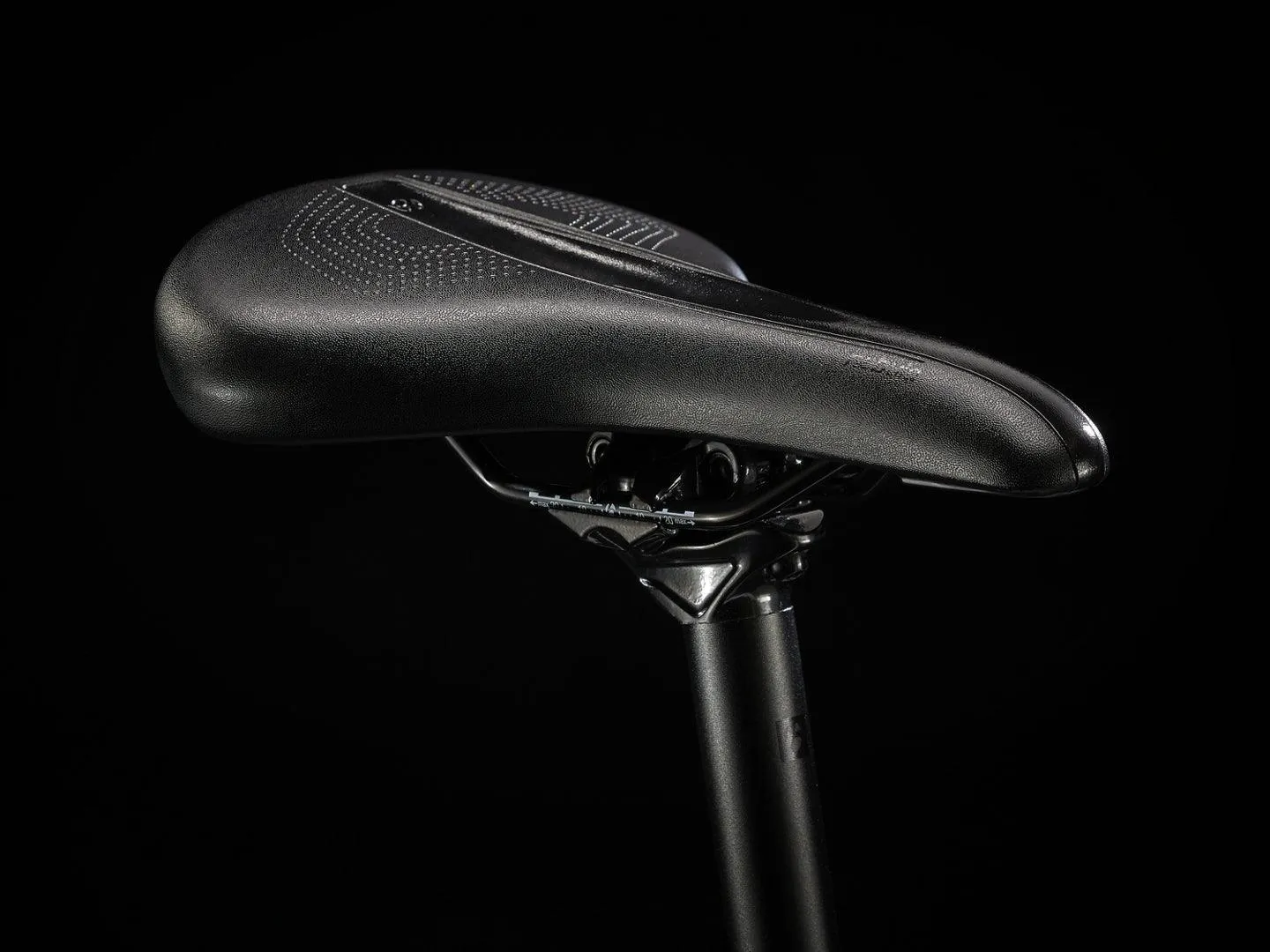

• Saddle- Bontrager H1
• Seatpost- Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
• Front Brake-

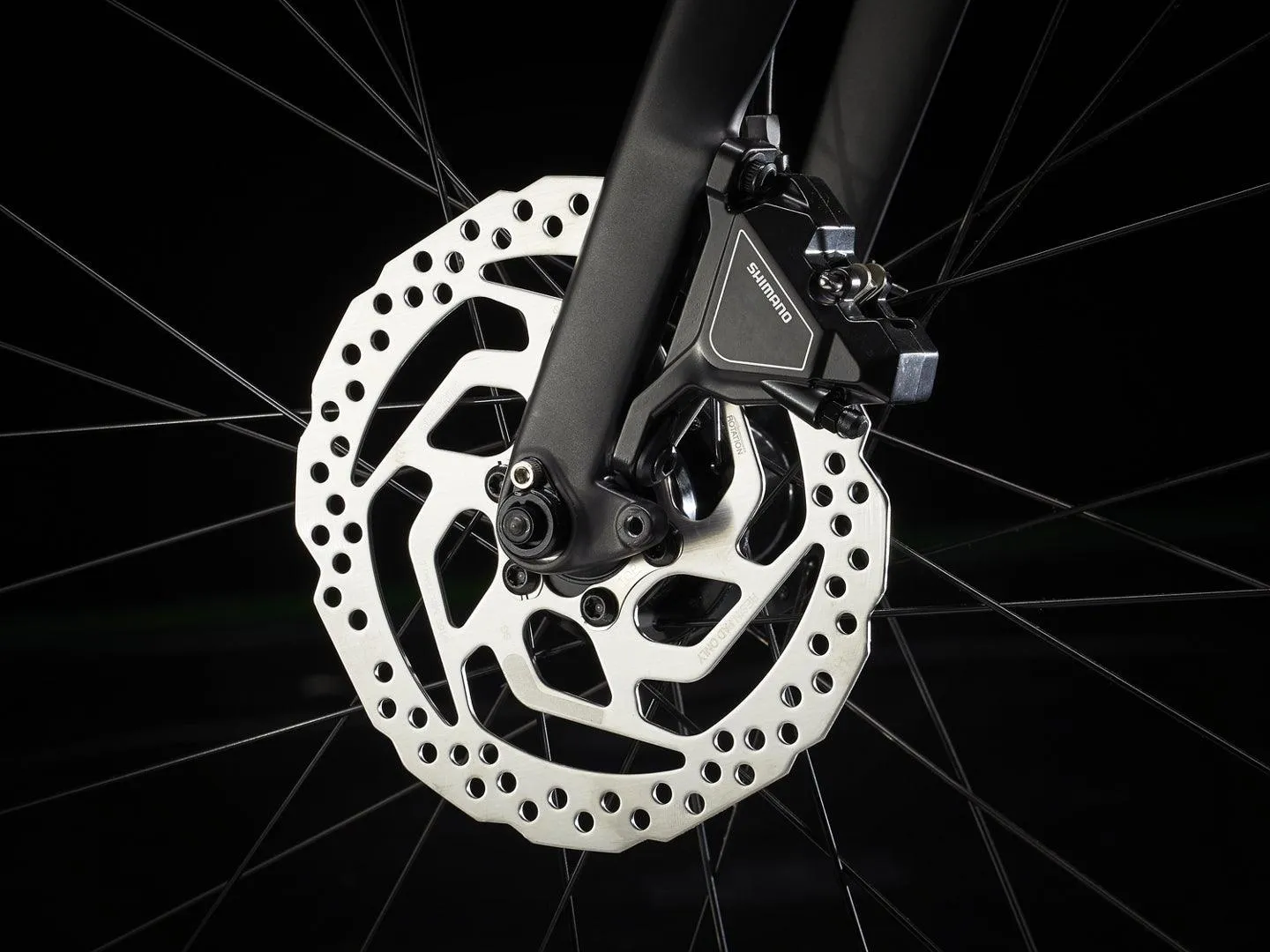

  Size: XS, S, M, L, XL, XXL Shimano hydraulic disc, MT201 lever, UR300 calliper
  Size: XS, S, M, L, XL, XXL Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
• Rear Brake-
  Size: XS, S, M, L, XL, XXL Shimano hydraulic disc, MT201 lever, UR300 calliper
  Size: XS, S, M, L, XL, XXL Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
• Front Wheel- Bontrager Tubeless Ready Disc, 32-hole, Presta valve
• Rear Wheel- Bontrager Tubeless Ready Disc, 32-hole, Presta valve

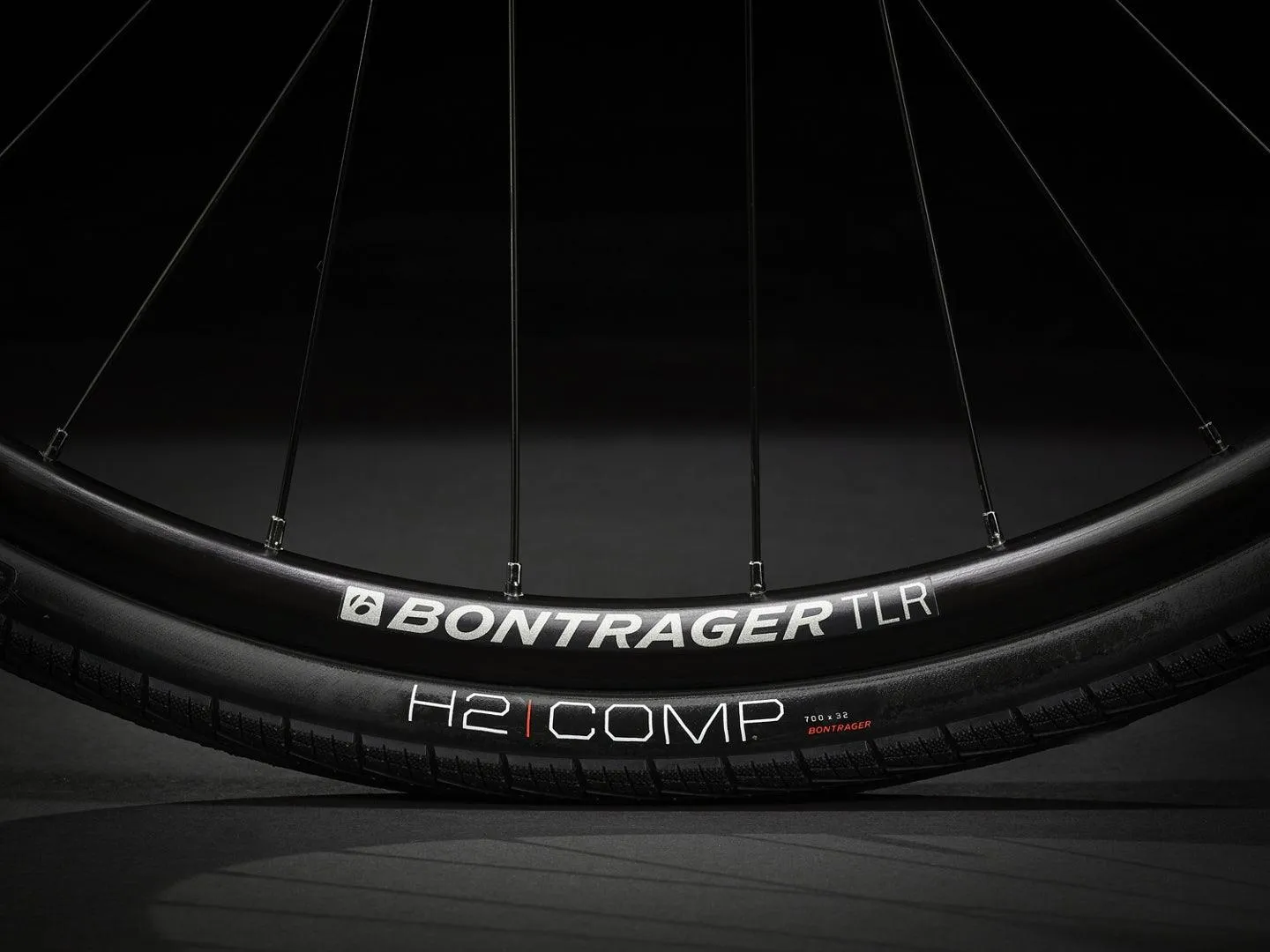

• Tire- Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
• Pedal- Bontrager City pedals
• Weight(Apprx)- 11.38 kg
