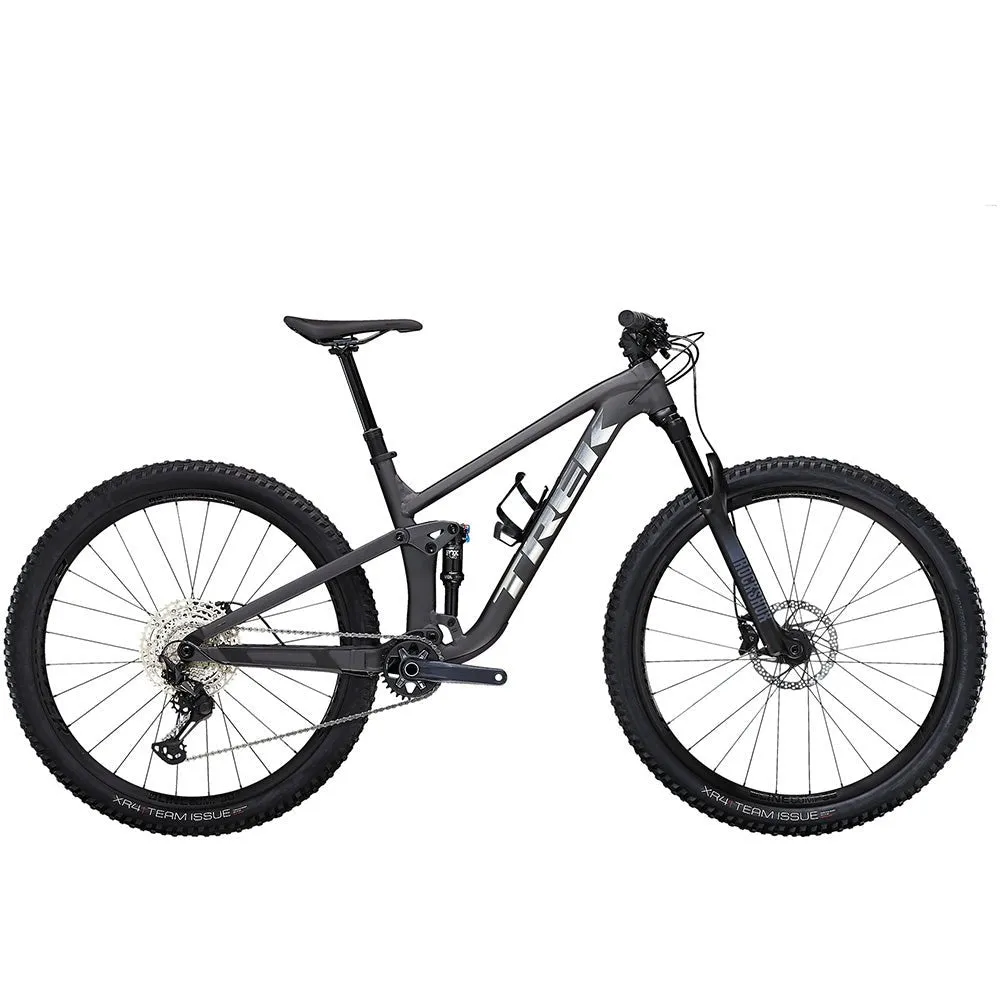

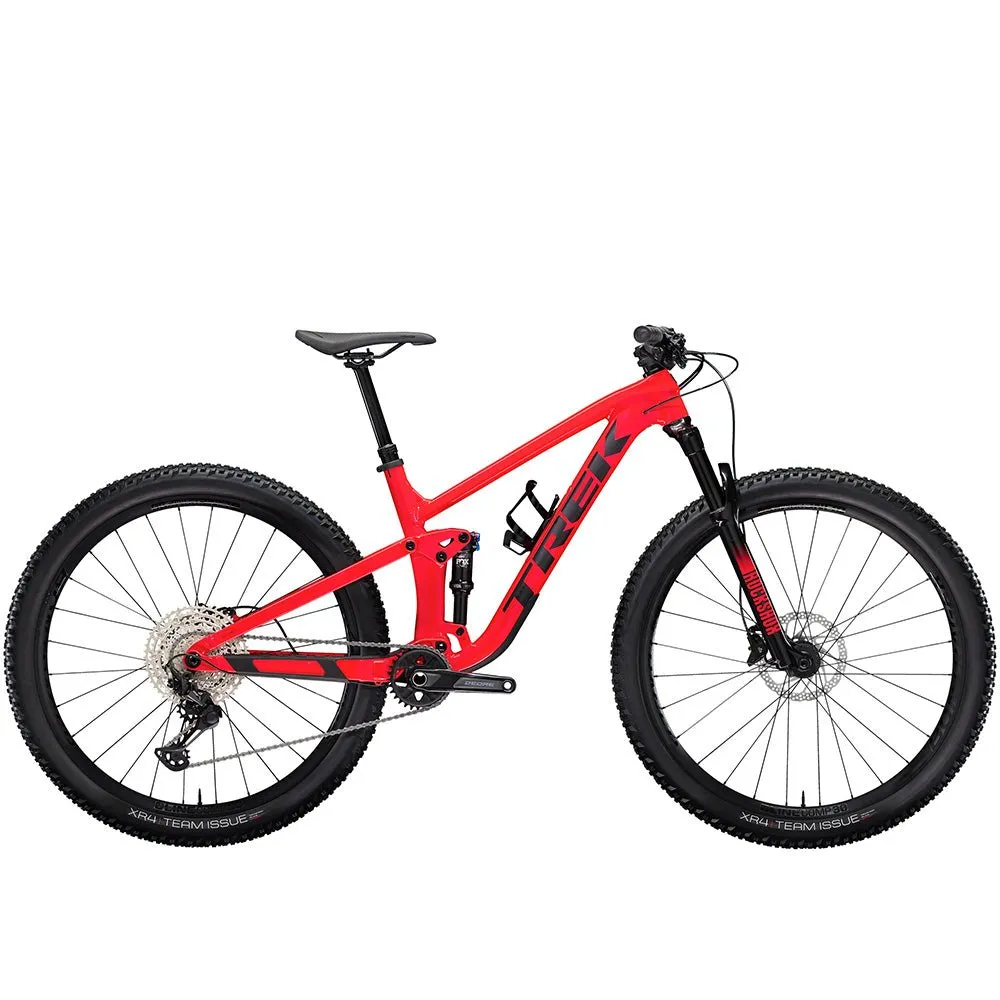

Name: Trek Top Fuel 7 Deore XT Bike
SKU: 558683

It's right for you if...

You want a full suspension mountain bike that’s fast on flats and rolling terrain, but has enough travel to get wild on the trail. You want a solid build spec at a price that won't break your bike bank.

This bike’s killer suspension setup is both efficient and ready to party
Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
A sleek internal storage compartment gives you a versatile spot to stow tools and gear
New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

The tech you get

A lightweight aluminum frame with internal storage, 120mm RockShox 35 Gold fork, 120mm of rear travel with FOX Performance Float DPS shock with a 3-position damper and a wide-range Shimano Deore/XT drivetrain. Plus, Bontrager Line Comp 30 wheels that are already completely tubeless ready, including sealant, hydraulic disc brakes, and a dropper post.

SPECS

FRAMESET
FRAME	Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
FORK	RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SHOCK	Fox Performance Float DPS, 3-position damper, 185x50mm
WHEELS
FRONT WHEEL	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
REAR WHEEL	Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
REAR SKEWER	Bontrager Switch thru axle, removable lever
RIM STRIP	Bontrager TLR
TIRES	Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40"
MAX TIRE SIZE	Frame: 29x2.5" Fork: see manufacturer
DRIVETRAIN
SHIFTER	Shimano SLX M7100, 12 speed
CRANKSET	Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
BOTTOM BRACKET	Shimano BB-MT501 BSA
REAR DERAILLEUR	Shimano XT M8100, long cage
CASSETTE	Shimano Deore M6100, 10-51, 12 speed
CHAIN	Shimano Deore M6100, 12 speed
MAX CHAINRING SIZE	Max: 36T (oval - 34T) Min: 28T
COMPONENTS
SADDLE	Bontrager Arvada, steel rails, 138 mm width
SEATPOST	TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
HANDLEBAR	Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
GRIPS	Bontrager XR Trail Comp, nylon lock-on
STEM	Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
BRAKE	Shimano hydraulic disc, MT4100 lever, MT410 calliper
BRAKE ROTOR	Shimano RT56, 6-bolt, 180 mm
ROTOR SIZE	Max brake rotor sizes: Front see fork manufacturer, rear 180mm
HEADSET	Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
ACCESSORIES
BAG	Bontrager BITS Internal Frame Storage Bag
WEIGHT
BIKE WEIGHT	M - 14.83 kg / 32.7 lbs
WEIGHT LIMIT	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

TECHNOLOGY

Knock Block

Knock Block has your frame's back when things go wrong. It prevents your handlebars from spinning all the way around in a crash, so your hoses won't get yanked, and your controls won't hit the top tube.

Oversized 34.9mm Dropper Post

Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.
